Wafer Processing Applications

Home / Wafer Processing Applications

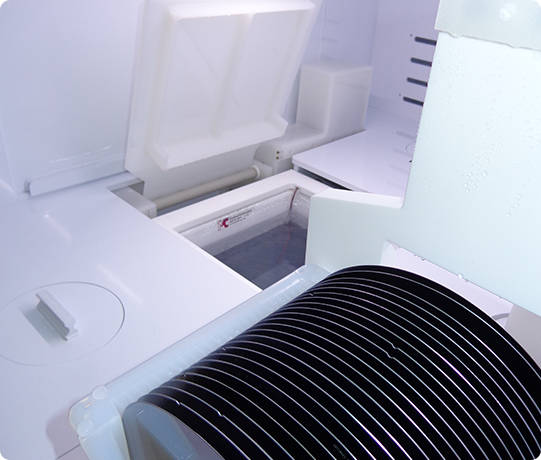

Wafer processing is an integral component of semiconductor fabrication, where precision and reliability are paramount. This intricate process requires equipment that can meet the exacting standards of an industry pushing the limits of technology. Modutek stands at the forefront as an industry-respected provider offering customizable, high-performance equipment. The solutions Modutek provides are highly reliable, with robust safety protocols and advanced data monitoring capabilities. Each system is tailored specifically for each technology manufacturer’s specific requirements, providing optimal efficiency and precision to support their wafer processing requirements.

The Critical Role of Silicon Wafer Cleaning

In semiconductor production, pristine silicon wafers are an absolute requirement since microscopic contamination could compromise the functionality of final microelectronic components. Therefore, the wafer cleaning process aims to remove particulates, organic films, and metallic impurities that compromise wafer quality and must be eliminated through cleaning procedures.


Modutek’s technology offers precision and efficiency, decreasing defect rates while increasing yield. The systems are engineered to meet even the most demanding cleaning requirements, combining innovative design with ease of operation. By integrating these systems, customers can expect consistent and reliable cleaning results, which help to secure a competitive advantage in today’s fast-paced semiconductor sector.

Advanced Equipment for Diverse Wet Process Applications

Modutek’s suite of wet process equipment is engineered to accommodate the varying demands of semiconductor manufacturers and research facilities, offering manual, semi-automated, and fully automated wet bench systems. To support unique etching, stripping, or cleaning processes, Modutek’s equipment is customizable to fit the process requirements of any facility, backed by exceptional on-site service to ensure seamless integration and minimal downtime.

Modutek stands out in innovation and customer responsiveness, demonstrating that operational flexibility is just as essential to their business success as technological progress. By choosing Modutek equipment for their operation needs, customers gain not just a provider but an indispensable partner with tailored solutions and comprehensive service packages that deliver outstanding value.

Innovative Solutions for Reducing Wafer Processing Times

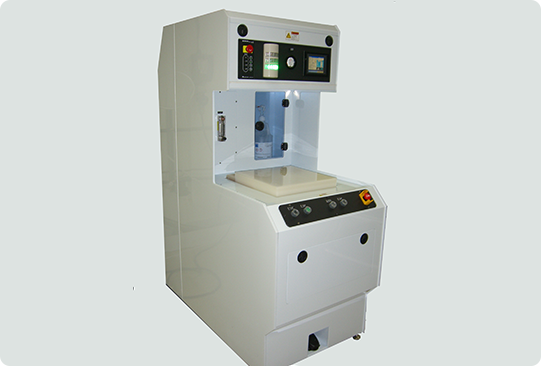

Modutek’s innovative solutions in wafer processing technology prominently featured in the IPA Vapor dryer system that utilizes Marangoni drying principles to enhance efficiency. This method eliminates watermarks and decreases drying times – essential factors when dealing with high-volume manufacturing environments. Modutek’s collaborative culture ensures that each IPA vapor dryer developed is created in tandem with direct customer input, resulting in products that not only meet but exceed operational requirements.

Modutek’s solutions focus on improving processing times while maintaining quality and reliability in their drying processes. This adoption of drying systems translates into a strategic advantage that enables semiconductor manufacturers to stay ahead of an increasingly competitive market.

Process Automation in Wafer Fabrication

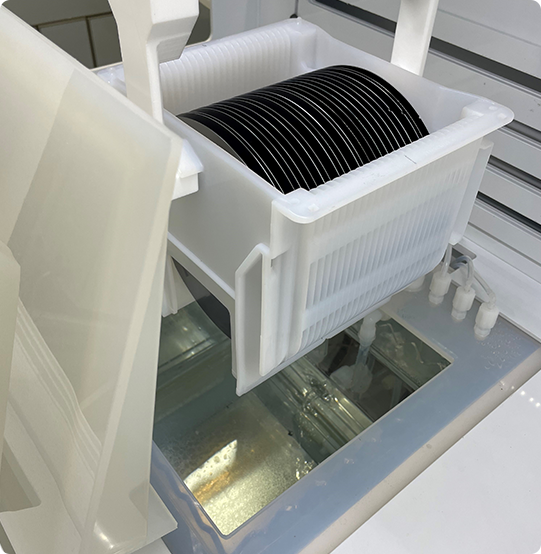

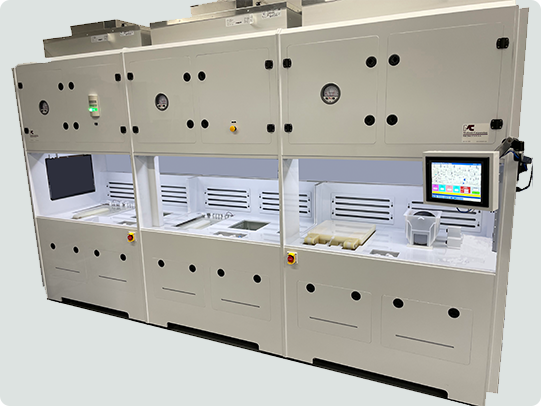

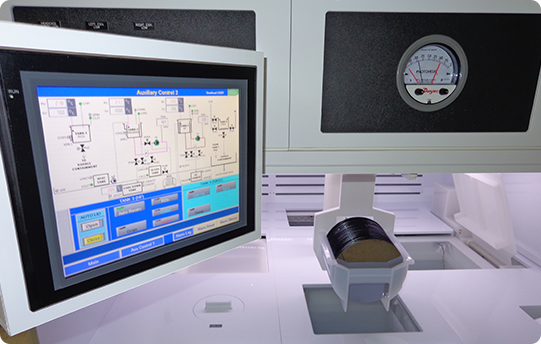

At the intersection of innovation and precision lies Modutek’s selection of semi-automated and fully automated wet bench systems designed to meet your specific wafer fabrication requirements. These leading-edge systems exhibit precision, repeatability, and reduced human error, all while increasing product yield. Semi-automated systems serve as a bridge for customers transitioning towards full automation, while fully automated systems represent efficiency and consistency at their finest.

Modutek’s in-house robotics and software design capabilities ensure that each system integrates smoothly into existing workflows, offering customers a custom solution that upholds the highest standards of compatibility and functionality. By trusting Modutek with their automation needs, semiconductor manufacturers can expect a transformation in their production lines, with higher wafer yields, and throughput.

Wafer Reclaim: Streamlined Efficiency and Enhanced Control

Wafer reclaim is a critical process in semiconductor manufacturing, involving restoring and reusing wafers with defects or contaminants. The Modutek rotary etcher is a specialized piece of equipment commonly used in this process. Modutek’s custom-designed wet station can also achieve these requirements using a manual process. Here is an overview of wafer reclaim equipment available at Modutek:

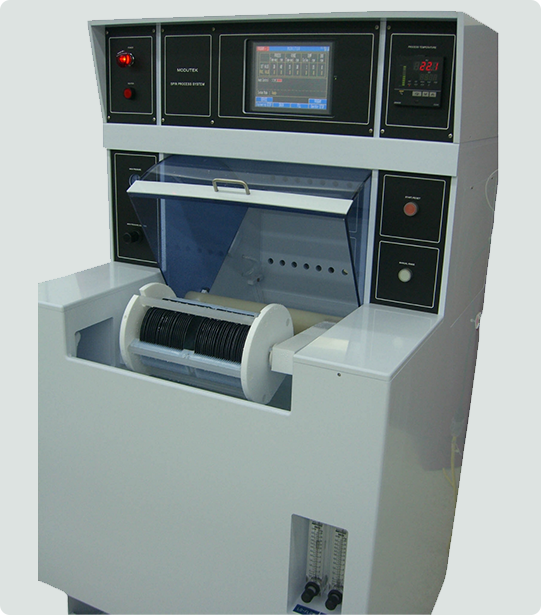

Modutek Rotary Wafer Etching System: The Rotary Wafer etcher is a specialized machine that provides precise etching and cleaning of silicon wafers. It can remove contaminants and defects from the surface of wafers, making them suitable for reuse. The rotary etcher is typically used in combination with other equipment to complete the wafer reclaim process.

Modutek Manual Reclaim Station: Some wafer reclaim requirements require multiple steps to achieve a final result. To meet this requirement, we work directly with you to lay out a manual wet reclaim process to meet this multi-step process.

It’s important to note that the specific processes and equipment used in wafer reclamation can vary depending on the semiconductor manufacturer’s requirements and the type of defects or contaminants that must be addressed. Modutek’s rotary wafer etcher or our manual process equipment is just one component of a comprehensive wafer reclaim process.

Comprehensive Wafer Cleaning Techniques

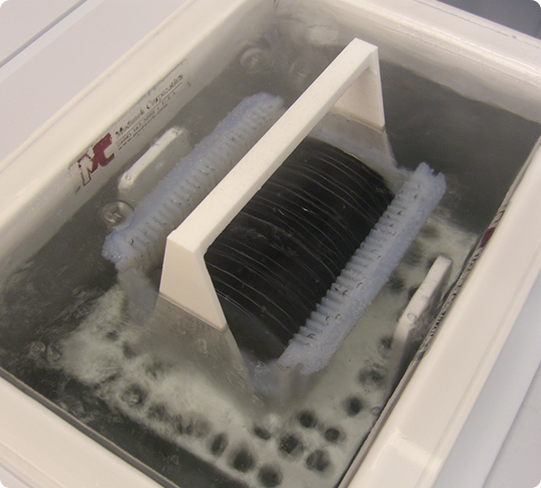

In semiconductor manufacturing, wafer cleaning processes are paramount for successful product delivery. Modutek offers various wafer cleaning process solutions tailored to meet the industry’s stringent standards. From traditional RCA and Piranha clean to the more advanced Megasonic cleaning, Modutek ensures every cleaning challenge is addressed with an efficient and effective solution.

Modutek understands the critical nature of particle and residue removal, which is why its equipment has been designed to carefully manage various cleaning chemistries and processes with precision. They offer semiconductor manufacturers automated technology for safe chemical handling processes that protect both operators and the environment.

By integrating Modutek’s cleaning systems into their operations, customers are equipped with reliable and scalable solutions that consistently produce outstanding results. These comprehensive techniques ensure effectiveness at keeping wafers pure and contribute towards the yield and performance of semiconductor devices. Read more about our wafer cleaning process solutions.

Wafer Etching Process: Precision Engineering of Microelectronic Structures

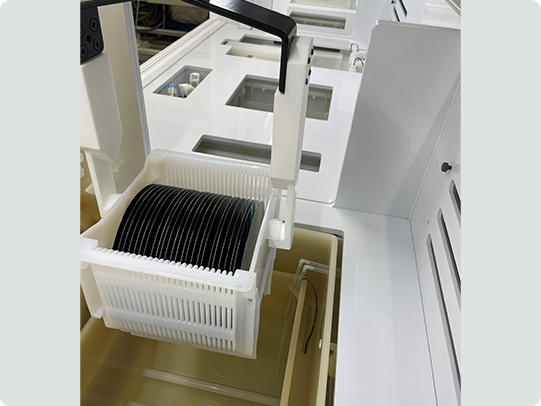

Etching is a critical phase in semiconductor fabrication, where precision can determine the success of microelectronic structures. Modutek excels at supporting various wafer etching processes tailored specifically to each customer. With advanced equipment designed for both wet and dry etching processes, Modutek caters to the end users’ meticulous requirements necessary for producing intricate circuit designs on silicon wafers.

Customers benefit from Modutek’s experienced engineers, who bring a consultive approach to each project. This ensures that etching equipment is customized for the specific requirements of a given application, whether that means ultrafine lines for dense integrated circuits or larger structures for power devices. Read more about our wafer etching process solutions.

Wafer Etching Process: Precision Engineering of Microelectronic Structures

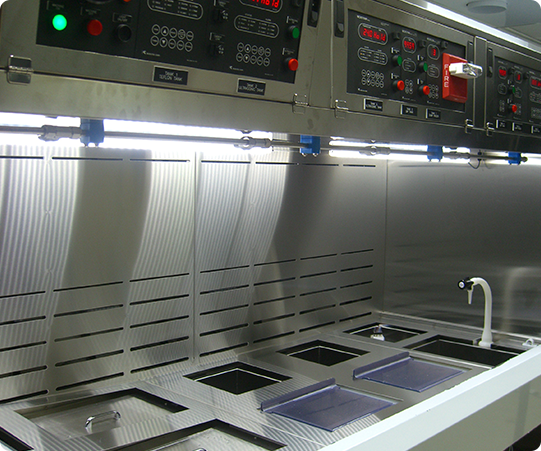

Wafer strip processes are essential in microelectronics manufacturing, prepping silicon substrate for device fabrication. Modutek’s custom strip process solutions are carefully tailored to each customer’s manufacturing protocols to remove photoresist and other organic materials with precision without harming their underlying structures. This tailored approach ensures the removal of photoresist and other organic materials without compromising the integrity of the underlying structures.

Modutek leverages advanced technology to design equipment that fits easily into existing lines, improving throughput while upholding stringent cleaning standards needed for subsequent manufacturing stages. The solutions Modutek provides are both time and resource-efficient. This reduces processing times while ensuring uniformity and repeatability. Read more details about how we support various wafer etching, and wafer strip processes.

Modutek's Legacy in Wet Process and Wafer Processing Applications

With over four decades of dedicated service in the semiconductor industry, Modutek is consistent in delivering solutions for wafer processing applications. Our reputation has been built upon high quality, reliability, and exceptional depth of expertise – assuring customers they have partnered with an experienced and knowledgeable equipment manufacturer.

Modutek’s comprehensive selection of products and solutions demonstrates our dedication to innovation, meeting the ever-evolving demands of technology manufacturers. The performance of our equipment stands as a testament to our steadfast pursuit of excellence and customer satisfaction.
