Wafer Fabrication Equipment

Home / Wafer Fabrication Equipment

In the rapidly evolving world of semiconductor technology, wafer fabrication equipment is the cornerstone of electronic device production. As electronic device geometries become smaller and more intricate, production requires precise control for optimal results. Reliable wafer manufacturing equipment is essential for maintaining the quality of semiconductor production to meet modern devices’ ever-evolving standards. Whether you need large-scale semiconductor production or cutting-edge R&D research applications, using equipment that supports your process requirements is essential.

Modutek provides an extensive range of wafer fabrication equipment, which includes manual, semi-automated, and fully automated wet bench stations. This equipment is meticulously designed to handle both acid and base (solvent) processing while meeting the diverse demands of semiconductor manufacturers and R&D facilities.


Overview of Wafer Fabrication Equipment

Wafer fabrication equipment is at the core of semiconductor manufacturing. Ranging from manual and semi-automated to fully automated systems, this equipment is designed to ensure precision, consistency, and optimal yields in wafer fabrication. Direct user interaction is at the core of manual wet process stations for increased control and hands-on operation.

Moving up the ladder of sophistication, semi-automated wet processing systems combine manual oversight with robotic precision for consistent process uniformity without incurring the costs of fully automated systems. At the pinnacle are fully automated wet bench systems.

These systems provide state-of-the-art robotics and software for accuracy and repeatability that help eliminate human errors while significantly increasing process efficiency.

Technology Provided in Semi-automated and Fully Automated Systems

Semi-automated stations provide an affordable option between manual and fully automated systems, offering robotic control at a more accessible price point. Their servo-controlled robots ensure accurate development of wafer etching, or wafer cleaning processes. Fully automated stations represent the most comprehensive technological batch progressing of wafers. Equipped with in-house designed robotics and software, these stations allow precise control over process times, chemical dosages, and environmental conditions. Modutek’s SolidWorks Simulation Professional and SolidWorks Flow Simulation software ensure that these automated systems offer optimal processing rates. This provides consistent output quality, leading to reduced errors, minimized waste, and tight process controls that are repeated every time.

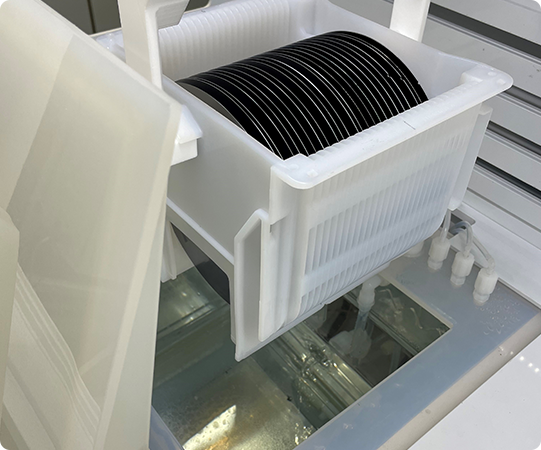

Automated Wet Bench System with Robot Loading into a SC1 Bath

Customizing Equipment to Meet Process Requirements

No two semiconductor manufacturing processes are the same. Different wafer processing applications, products, and research requirements often necessitate tailored solutions for optimal production. Modutek recognizes this fact and offers extensive customization options for both their semi-automated and fully automated wafer fabrication equipment. Be it chemical management interfaces, specific construction materials, data logging, or resistivity monitoring control, Modutek’s commitment is to ensure each customer’s unique requirements are met. This level of flexibility, combined with Modutek’s expertise with in-house robotic and software design, means systems cannot only meet but often exceed the diverse needs of customers in the industry.

Advantages of Modutek's Wafer Fabrication Equipment

Precision in Process Control with Automated Systems

Accuracy is paramount in an industry where micrometers make all the difference. Modutek’s fully automated wafer fabrication equipment delivers meticulous control at each stage of the manufacturing process. Equipped with proprietary robotics and software developed in-house by Modutek’s engineers, these systems regulate variables like chemical concentrations, temperatures, and timing with remarkable precision for increased waste reduction, decreased errors, and high product quality standards.

An Effective Balance between Control and Cost in Semi-Automated Systems

Not all fabrication processes necessitate the full suite of automation. Our semi-automated wafer fabrication equipment effectively balances the hands-on control of manual systems and the precision of fully automated ones. This blend results in a cost-effective solution that doesn’t compromise output quality. With Modutek’s semi-automated wet process systems, clients can achieve high yield rates with lower equipment costs.


Compliance With Industry Standards to Achieve Maximum Reliability

Adherence to industry standards goes beyond simply checking boxes; it ensures safety, efficiency, and trustworthiness in our equipment. Modutek’s equipment is designed to meet certifications that include UL508a, NFPA 70- NEC, NFPA 79, CSA CE, and Ashare. In addition, Modutek also provides optional testing and certifications that go beyond industry compliance standards to demonstrate its commitment to high quality and safety. With guarantees of up to two years and comprehensive warranties, Modutek products provide customers with high-quality equipment and systems they can rely on.

Customization Capabilities to Meet Diverse Needs

Modutek understands that semiconductor manufacturing requires special consideration for every business’s unique requirements. We design our wafer fabrication equipment with customization in mind. Whether it’s adapting interfaces for different chemical management systems, selecting special construction materials, or adding advanced data logging features, we have the expertise to modify our systems to meet our customers’ exact requirements. This approach ensures that our customers always have equipment tailored to their specific manufacturing processes.

Equipment Warranties and Extended Support

Beyond delivering top-notch equipment, Modutek stands by its customers with unparalleled customer support. Our warranties, which range from one to two years, underscore our confidence in the durability and reliability of our products. In addition to standard warranty periods, Modutek offers customers the ability to enter extended service contracts that ensure priority service, timely updates, and regular equipment checks are done to ensure systems and equipment are properly maintained.

Exploring Modutek's Range of Wafer Fabrication Equipment

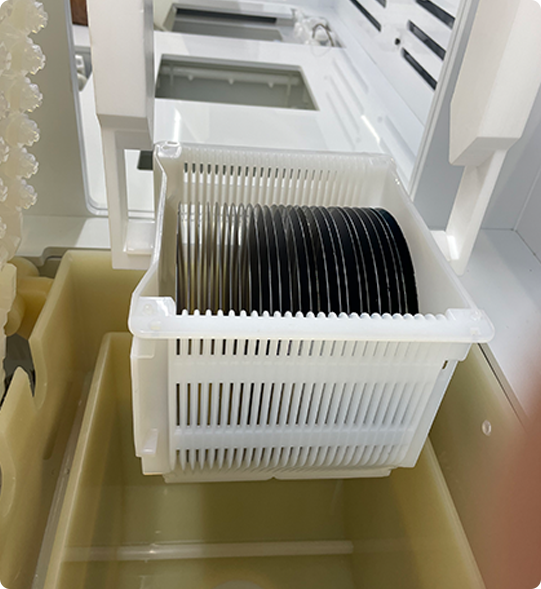

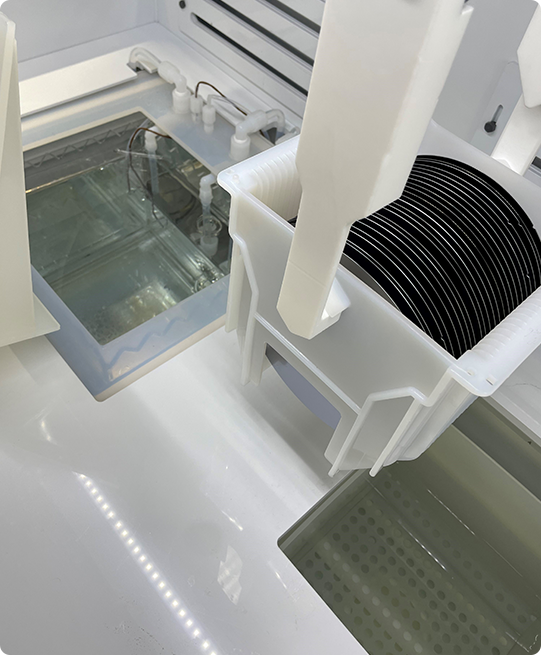

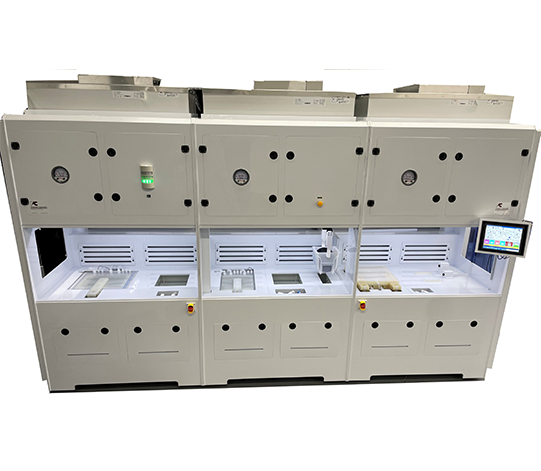

Fully Automated Systems

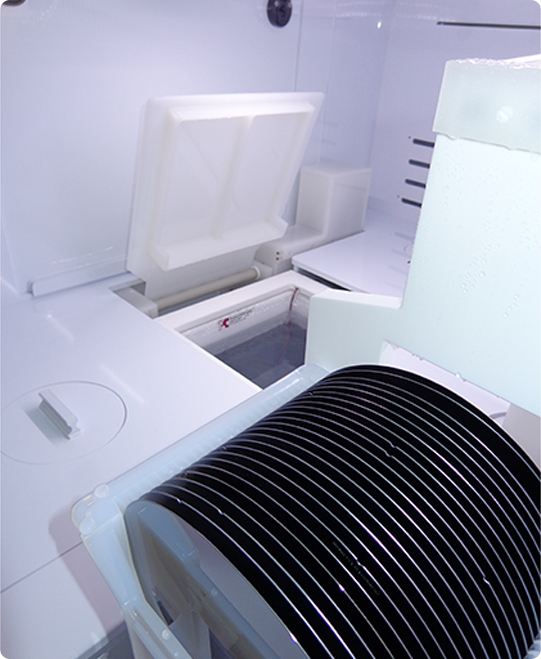

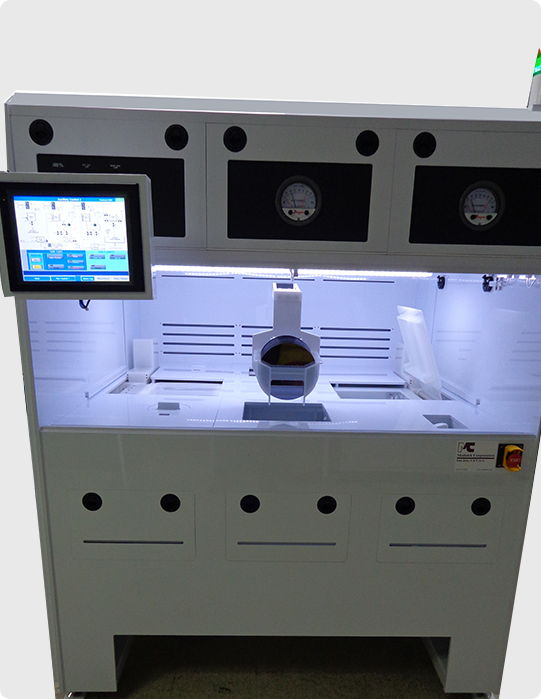

Semi-Automated Systems

Compliance and Certification

Custom Solutions for Unique Challenges

wafer fabrication equipment

Why Choose Modutek for Wafer Fabrication Equipment Needs?

Industry Experience, Expertise with a Focus on Innovation

Commitment to Quality

Comprehensive Customer Support

At Modutek, we understand the complex needs of the semiconductor industry. Over the years, we’ve built a reputation for delivering state-of-the-art wafer fabrication equipment that integrates the latest technologies, adheres to industry standards, and meets the diverse needs of our customers.

Your success is at the core of everything we do. Our team of experts is dedicated to providing support, guidance, and technical assistance. From initial consultation to post-purchase services, your journey with us promises to be a collaborative and rewarding experience. Contact us to schedule a complimentary consultation to discuss your specific wafer fabrication equipment requirements.
