Silicon Wafer Cleaning Equipment
Modutek strives to partner with our customers by developing the most effective and reliable silicon wafer cleaning equipment solutions. Our staff of knowledgeable experts can provide application-specific processing solutions in semiconductor etching, resist strip, advanced wet etch, and more. The industry’s demand for effective and efficient semiconductor components requires that any contaminants and impurities be removed during the microfabrication process. Without it, the performance and functionality of components can be hindered, affecting end costs and potentially damaging the reputation of the manufacturer.
Microelectronic cleaning processes have become our specialty at Modutek. We’ve been a supplier of semiconductor manufacturing equipment since 1980, and that experience is manifest in the design of our advanced wafer cleaning equipment. We offer various options for cleaning wafers that can be customized to meet the needs of your application. Our team of engineers and software developers works with you from the initial planning stages and design approval to the final acceptance and installation process at your facility. You can be assured that you won’t find a better option when it comes to high-quality and reliable equipment.
Silicon Wafer Cleaning Equipment Options:
Silicon wafer cleaning equipment is integral to semiconductor manufacturing, serving a critical role in the production of high-quality, reliable semiconductor devices. Modutek offers various equipment options to optimize wafer cleaning performance with precision, efficiency, and compatibility with advanced manufacturing processes.
The cleaning equipment options can include the following:
- Automated Wafer Cleaning: Modutek incorporates automated wafer cleaning in their fully automated and semi-automated wet bench systems that are tailored for specific cleaning processes. This can include RCA or SC1 & SC2 clean and other cleaning processes with optimum control and consistency. Automation aids in reproducibility, which is paramount for clients needing to maintain strict quality standards.
- Megasonic Cleaning Systems: Modutek can incorporate megasonic cleaning that uses high-frequency sound waves that enables efficient removal of particles from the wafer surface without damaging the substrate. This is particularly important for clients requiring delicate handling of thin wafers or advanced device structures.
- Ozone Cleaning Solutions: This incorporates ozone cleaning methods that remove organic contaminants. This is a key consideration for those integrating cleaning processes into ultra-clean manufacturing environments.
Each equipment option addresses distinct aspects of the wafer cleaning process, such as minimizing contamination, ensuring process repeatability, and integrating with automated manufacturing lines.

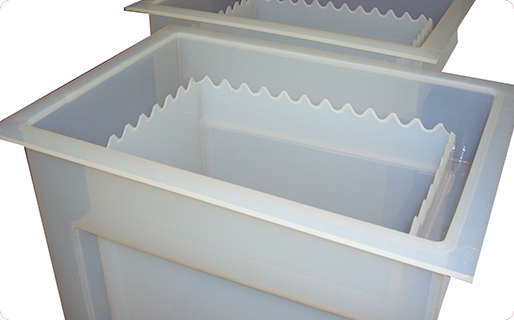

Custom-fit Teflon Tanks
Our silicon wafer cleaning equipment features Teflon heated tanks available in either a TFa Series configuration for our Recirculating Overflow Baths, a TI Series configuration for our Static Baths, or a TT Series configuration for our Ambient Baths. Each is available in either a standard single- or double-load capacity, or custom sizes to fit your specifications to fit easily into your wafer cleaning equipment. In addition to these configuration options, you can choose between two heating options: Teflon inline heating or overflow weir immersion heating. Our Teflon tanks have a standard operating temperature range of 30⁰C–100⁰C, with a heat-up rate of 2⁰C–3⁰C per minute.
Silicon Wafer Cleaning Equipment FAQs
1. How Do I Choose Between the Different Silicon Wafer Cleaning Options Modutek Offers?
The right option depends on what the process needs to remove and how sensitive the wafer or device structure is. Automated wafer cleaning fits high-volume RCA, SC1, or SC2 processes where reproducibility matters most. Megasonic cleaning suits particle removal from delicate, thin wafers or advanced device structures. Ozone cleaning targets organic contaminants in ultra-clean environments. Most wafer cleaning systems combine more than one of these options rather than relying on a single method.
2. Can Silicon Wafer Cleaning Equipment Be Customized for a Specific Fabrication Process?
Yes. Modutek’s engineers work with customers from initial planning and design approval through final installation, so they build the cleaning configuration, tank series, and heating method around the customer’s specific application rather than a fixed standard setup.
3. Does Silicon Wafer Cleaning Equipment Require a Dedicated Cleanroom Environment?
Cleanroom requirements depend on the contamination sensitivity of the specific process and device being manufactured, not on the cleaning equipment itself. Confirm the cleanroom classification your process requires with Modutek’s engineering team when scoping a system.
4. How Long Does It Take to Design and Install Custom Wafer Cleaning Equipment?
Timelines vary with configuration complexity, since each system moves through planning, design approval, and final acceptance testing before installation. Modutek does not publish a fixed lead time. Contact Modutek’s engineering team for a project-specific schedule.
5. What Is the Difference Between Megasonic Cleaning and Ozone Cleaning for Wafer Processing?
Megasonic cleaning uses high-frequency sound waves to dislodge particles from the wafer surface without damaging the substrate, making it suited to delicate, thin wafers. Ozone cleaning instead targets organic contaminants chemically, which matters most for processes that must remain compatible with ultra-clean manufacturing environments. Many wafer cleaning configurations use both, applied to different contamination types in the same process.
Request a Consultation to Discuss Your Silicon Wafer Cleaning Equipment Requirements
Modutek has designed and built semiconductor wafer cleaning equipment in San Jose, California, since 1980, with configurations spanning automated, megasonic, and ozone process options for wafer processing applications. Every system includes a one-year parts warranty and Modutek’s customer support network.
Contact Modutek’s engineering team to discuss your specific cleaning process and fabrication requirements.
