Modutek Offers an Individualized Approach to KOH Etching

KOH etching is a chemical process used for the fabrication of silicon nanostructures.  This etching process has been studied extensively in both research and real-world applications.  Modutek provides individualized solutions for customers that want to use this process by using the KOH etching tank along with their existing wet bench equipment. All of Modutek’s KOH tanks are manufactured on site and built per your specifications.  All PFA material is used for cleanliness and compatibility.

KOH-Etching-in-Teflon-Tank--1
KOH-Etching-in-Wet-Bench

Definition of KOH Etching

Potassium Hydroxide (KOH) etching is a wet chemical etching process used to create cavities in silicon.  Highly corrosive alkaline chemical compound (pH > 12) is used in conjunction with DI water and thermal regulation.  The etch rate is limited; and the precision of Si etching is dependent on consistency throughout the nano chemical process. The process allows for the optimal precision of fabricating Si wafers.  In addition, the KOH etching process can be automated for increased efficiency and reduction in cost.

Brief Overview of the KOH Etching Process

KOH etching utilizes wet bench equipment using Modutek’s TFa or TT series of PFA Teflon tanks.  The anisotropic nature of Si etching offers increased flexibility and control after the process is established. The desired end product is impacted by the etching temperature; the percentage of KOH used; the implementation of crystal planes that act as a stop; the degree of anisotropy; the presence of any atomic defects in Si crystal; and the presence of other impurities naturally found in Si crystal.  The doping concentration of Si has a notable impact on KOH etching; boron doped Si can also act as an etch stop if the boron doping concentration exceeds certain parameters.
KOH-Etching-using-Teflon-Tanks

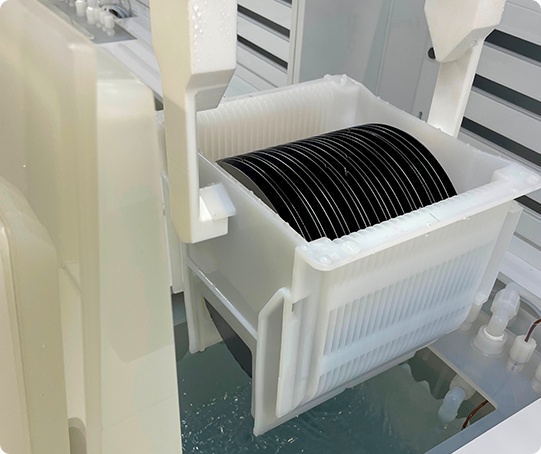

KOH-4th-sec

Benefits of KOH Etching

KOH etching processes have notable advantages when compared to dry etching and other types of silicon wet etching process methods used to create nanostructures.
KOH Etching Benefits Include:

Dry etching processes (Hydrazine) may pose notable risk of explosion and harmful toxins.  Similar to KOH, Tetramethylammonium Hydroxide (TMAH) is an isotropic wet etching process.  KOH etching is a superior process as TMAH etching is slower, and TMAH etching may result in the formation of hillocks.

Advantages of Modutek’s Individualized Approach to KOH Etching

Modutek’s KOH Silicon Etch Tank is designed to decrease impurities and unwanted byproducts due to advanced welding techniques with PFA sheet material. Continual adjustments to the Si etching process are not necessary after the initial process has been established.  We construct all of our products per individual customer specifications, and we routinely design products that are compatible with a customer’s existing wet bench equipment.

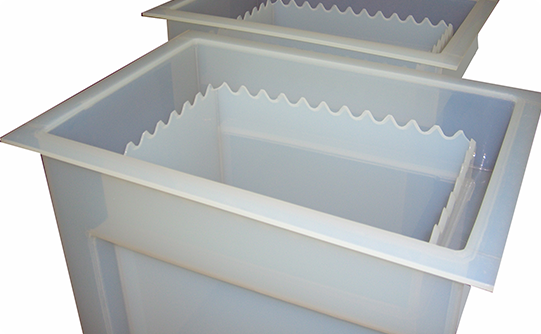

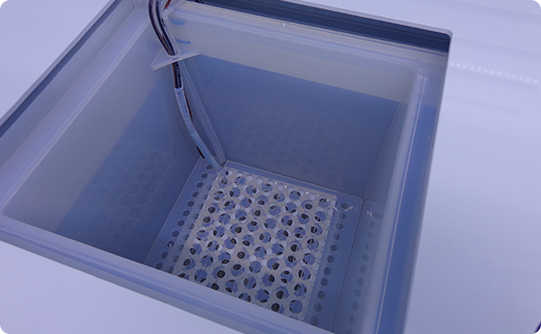

Teflon-Tank-for-KOH-Etching
Teflon-Tanks-for-KOH-Etching

A few notable Modutek design features include the following
