How Chemical Carts Support Chemical Disposal

Share

howchemicalcartssupportchemicaldisposal1-300x300

How Chemical Carts Support Chemical DisposalWhen difficulties associated with chemical disposal and regulatory compliance increase, it’s time to think about either removing used chemicals for off-site disposal or using dedicated equipment for disposal according to official guidelines. Chemical carts can be rolled over to process stations and can pump used chemicals from the process tanks to a container on the cart. The used chemicals can then be turned over to a disposal company or can be neutralized and treated in an onsite facility. The manufacturing process can continue with a fresh batch of chemicals while documentation and handling of the used chemicals can be carried out according to local regulations.

Chemical Carts Remove Chemicals Quickly and Safely

Once the chemicals for a process step have fulfilled their function and the process step is complete, the used chemicals have to be drained from the process tank so that the next process batch can begin. The use of chemical handling equipment such as pump carts is a flexible solution allowing operators to remove used chemicals from the process tanks for different process steps.

An operator can roll the chemical pump cart to the tank that contains the used chemicals. A suction wand allows the operator to pump the chemicals out of the process tank. The used chemicals are pumped into a dedicated storage tank on the chemical pump cart and the cart can then be rolled out to a designated disposal area.

Depending on whether the company handles chemical neutralization and disposal in house or not, the chemicals can be transferred to a disposal system or turned over to an external chemical disposal specialist. In either case, documentation for the handling of chemicals according to local laws and regulations can be prepared before final disposal.

Modutek’s Chemical Carts Feature Ease of Use and Enhanced Safety

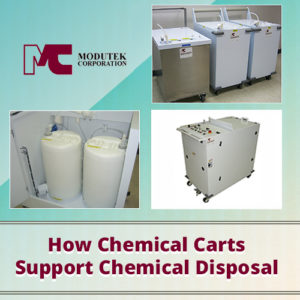

At 36″ long x 18″ wide x 42″ tall, Modutek’s chemical pump carts are compact and easy to roll out. Made of white polypropylene, the carts run on swivel casters with brakes and feature independent suction and discharge tubes. Pumping is with a 3/8th inch pneumatic pump. The five gallon chemical tank on the cart has a double containment system and is DOT (Department of Transportation) approved. A high level sensor on the tank is interlocked with the pump for additional safety. The plumbing is all Teflon and each cart can handle multiple applications.

As an option, chemical carts can be delivered in a stainless steel design for solvent applications. Other options include a pressure interlock safety switch, a large capacity tank and a double dump design. Modutek can help customers decide on the options they need and make sure that the chemical pump carts meet their requirements.

Modutek’s Chemical Handling Products Fulfill Manufacturing and Research Facility Needs

Modutek manufactures a complete line of chemical handling equipment to meet the needs of manufacturing plants and research facilities. In addition to chemical carts, Modutek’s chemical handling systems include chemical delivery systems, chemical collection systems and chemical lift stations. The systems can store chemicals, deliver them to process stations and remove them to neutralization areas. The chemical handling equipment is designed to interface with existing or new manufacturing lines and can be customized for almost any application. For example, storage in large tote containers with a load cell interface reduces drum changes and the lift station functions can be incorporated into a process station in a space-saving design. Throughout the design process, Modutek works closely with customers to identify production line issues and develop effective solutions. The company prioritizes customer satisfaction and delivers equipment of the highest quality with low operating costs and a low total cost of ownership. Contact Modutek for a free consultation or quote on selecting the right chemical handling equipment to meet your specific requirements.
