How Marangoni Drying Produces Superior Surface Conditioning for Wafer ProcessingAt the end of a particular step in silicon wafer processing, wafers often have to be cleaned, rinsed and dried. The resulting wafer surfaces must be free of water, watermarks, particles and organic residues. Older technologies such as spinning the wafers rapidly or heat drying can no longer fulfill the requirements of high density electronic devices on today’s silicon wafers. Water is hard to remove completely from complicated geometries and drying can leave contaminating watermarks and particles.

Such contamination can lead to product defects in subsequent processing steps or to high failure rates as the contamination impacts quality. IPA (isopropyl alcohol) drying using the Marangoni drying effect leads to dry silicon wafer surfaces without watermarks or particles. Modutek’s IPA vapor dryer is cost effective and can be integrated in a wet bench process without adding drying transfer steps.

How it Works

In Modutek’ IPA drying process, IPA vapor is introduced at the top of the drying tank to ensure even vapor distribution. Because the IPA has a lower surface tension than water, it introduces a surface tension gradient where it interfaces with the water on the wafer surface. As a result of the Marangoni drying effect, water flows off the surface of the silicon wafer and leaves it dry and clean.

The departing water also takes along any impurities or particles suspended within it. No watermarks are present because the water does not dry on the wafer surface and ozone can be introduced into the drying tank to eliminate trace organic contamination. There are no moving parts inside the chamber so physical wafer damage is eliminated and drying cycles typically last ten to fifteen minutes.

Modutek’s Design

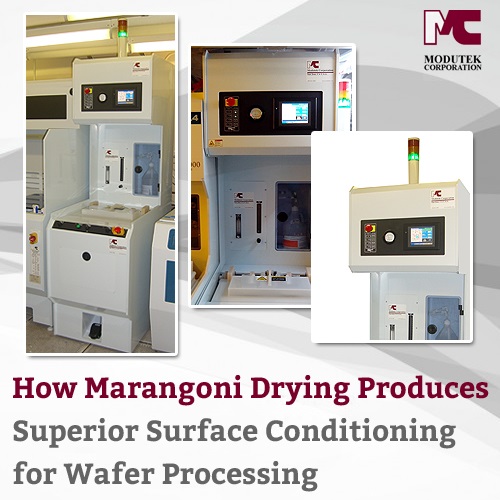

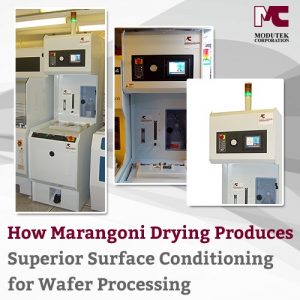

The stand-alone Modutek IPA dryer is a 30″ wide cabinet of polypropylene construction. It features wiring to NFPA 70 & 79 and has all Teflon fitting, valves and tubes. A touch screen controls operation with a graphic user interface and the dryer has a multiple recipe function.

The unit has an N2 head case purge with an interlock, a hot N2 dry feature, a continuous flow DI water manifold and an auto lid with foot switch open. PVC side shields are removable and there is DI water degassing function using a membrane contactor. Third party certification for NEC and NFPA is available.

Dryer options include PVC construction, a manual lid and a quick dump feature. Data logging and online support are available. Other options include a static eliminator, resistivity monitoring, HEPA fan filter units and a fire suppression system. Modutek can customize any dryer to customer specifications.

IPA Dryer Operation

The Modutek MVD series IPA dryer is a competitive solution with a single drying chamber for DI water rinsing and IPA vapor drying. The IPA vapor is generated in a one gallon bottle installed at deck level for easy changing. Introducing the vapor at the top of the tank is an efficient way of achieving even distribution of the vapor and reduces IPA consumption. The dryer can handle all wafer sizes and glass substrates and Modutek can integrate the IPA drying function into wet bench stations to eliminate a transfer step.

Benefits of Modutek’s IPA Vapor Dryer

Modutek’s specialists work with customer engineering teams to design a dryer that best matches the process application. Modutek’s design and software implementations are all carried out in house and acceptance testing with de-ionized water is available. The company’s extensive experience in the semiconductor manufacturing industry lets it provide first class customer support at all stages of a contract and after delivery. If you need to improve your wafer processing quality and want a free consultation or quote on using an IPA Vapor Dryer, call Modutek or email Modutek@modutek.com.
