The cleaning of silicon wafers is one of the key process steps needed in semiconductor manufacturing. This as become even more critical as micro circuit geometrics continue to shrink on 300 mm silicon wafers. Sub micron particles must be removed from the wafer substrate without damaging the delicate microcircuit structures from previous process steps. Particles that remain may result in defective semiconductor components that don’t work or low quality devices that have sub-par performance.
Incorporating Megasonic cleaning technology in the wafer cleaning process effectively removes sub-micron particles and contaminants without damaging or altering the wafer surface. In order to clean effectively selecting the appropriate frequency and power level is important. Modutek has partnered with Kaijo Shibuya Corporation to incorporate their high frequency Megasonic cleaning systems directly into Modutek’s wet bench process equipment. The wet bench stations combine chemical cleaning processes such as RCA or SC1 with Megasonic cleaning in the megahertz range to remove particles and contaminants down to 0.1 microns. Depending on the cleaning temperature and duration, cleaning efficiencies of over 99 percent can be achieved.
How Megasonic Cleaning Technology Works
Megasonic cleaning systems use a high frequency generator to create high frequency sound waves through the use of a transducer that is immersed in a liquid filled cleaning tank. The compression waves that are generated from the sound create high pressure at their peaks and low pressure at their troughs. Small cavitation bubbles appear in the low-pressure troughs and collapse in the high-pressure peaks. The action of the bubbles in the liquid effectively removes contaminants and particles from the exposed surfaces.
Lower ultrasonic frequencies in the 20-100 kHz range produce relatively large energetic cavitation bubbles which can cause damage to delicate part surfaces. For applications associated with semiconductor cleaning, megasonic cleaning in the megahertz range is required since it generates much smaller energetic cavitation bubbles. The gentle cleaning action from bubbles at the megasonic frequency range will effectively clean without damaging the wafer surface.
The action of cavitation bubbles in the cleaning tank will also agitate the cleaning solution which reduces boundary layers and allows the cleaning solution access very small surface areas such as crevices and complex shapes. The use of megasonic cleaning in silicon wafer manufacturing improves the overall effectiveness of the chemical cleaning solution by removing small sub-micron particles through the action of energetic bubbles.
Modutek’s Use of Megasonic Cleaning

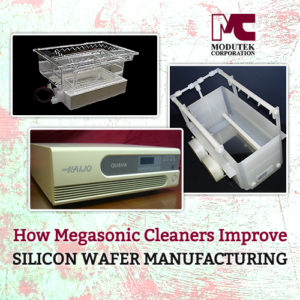

Modutek has used their partnership with Kaijo Corporation to continually improve the cleaning performance of their wet benches by using Kaijo’s Megasonic Cleaning technology. Kaijo is a world leader in megasonic and ultrasonic cleaning systems and Modutek incorporates the Quava megasonic cleaning system generator into their wet bench stations for this application.
The Megasonic cleaning system incorporated within Modutek’s wet bench station utilizes Kaijo’s standard megasonic generator which operates at 950 kHz. Frequency ranges of 200 kHz, 430 kHz, 750 kHz as well as 2 MHz are also available for cleaning applications that require a more or less robust cleaning action. There are three versions of Megasonic cleaning systems available which provide power levels of 600, 900 or 1200 Watts.
Modutek incorporates the use of Megasonic cleaning into their wet benches using either indirect or direct bath designs. Indirect Megasonic cleaning can operate at temperatures of up to 140 degrees centigrade while the direct design places a Teflon-coated transducer directly into the tank and can operate at temperatures up to 70 degrees centigrade. Both design options provide optimal sub micron particle removal without causing cavitation damage to the silicon wafers at the standard 950 kHz frequency.
Process engineers at semiconductor manufacturing fabs have effectively used Modutek’s wet benches stations that incorporate the use of megasonic cleaning to improve semiconductor device yields. The time needed for cleaning wafers is reduced while cleaning effectiveness is higher with less chemical consumption. The use of Megasonic technology has improved the removal of small sub-micron contaminants and has reduced wafer defects to produce better quality semiconductor devices. If you need to improve wafer manufacturing processes and device yields call Modutek for a free consultation or quote at 866-803-1533 or email Modutek@modutek.com.
