Improving Wafer Manufacturing Processes with Automated Equipment

Share

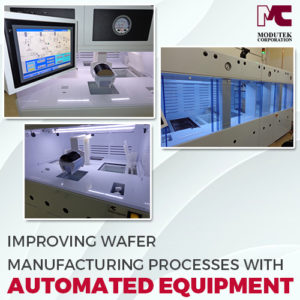

improving-wafer-manufacturing-processes-with-automated-equipment-300x300

Improving Wafer Manufacturing Processes with Automated EquipmentAutomated wafer fabrication equipment can improve semiconductor manufacturing facility performance, but all the associated process settings must be programmed properly. Before the manufacturing process can be implemented on a fully automated wet bench station, the settings, timing and other parameters have to be fine tuned. As circuit geometries and micro-structures become smaller and more tightly packed, the chemical concentrations, temperature levels and timed intervals affecting the etch rate become more and more critical. Fully automated equipment can precisely and reliably run a semiconductor manufacturing process once the correct variables are determined and programmed.

Manual Operation Can Determine the Settings for the Process Variables

Once wafer fabrication processes such as KOH etching are chosen, the process variables can be selected. Etching can be either isotropic or anisotropic and etching speed or precision can vary. Other factors may come into play as well. Initially it makes sense to run the new process on a manual station so that the process results for rough settings of basic variables such a concentrations, temperature and timing can be determined. These variables can then be adjusted to get an initial and acceptable process result.

Semi-Automatic Operation Can Fine Tune the Process

After determining the rough settings of the basic variables in manual operation, transferring to semi-automatic operation to optimize the process steps can save time. Those variables that will no longer change can be programmed into the semi-automatic software control while the others can be adjusted manually to get the best process result. In this way, as each process step is optimized, it can be programmed so that when optimization is complete, the process is ready to run on fully automated wafer processing equipment.

Fully Automated Operation Improves Semiconductor Manufacturing Facility Performance

Fully automated wet process stations for which the process has been optimized in manual and semi-automated operation can help improve overall production facility performance in the following ways:

  • Programmed settings ensure that the process is repeatable for different batches
  • Use of wet processing simulation software during optimization helps ensure accurate process parameters
  • Full automation eliminates human error
  • Precise dosages of chemicals and accurate timing results in fewer defective products
  • Throughput and wafer yields are increased

The programmed settings can be used again to get an identical result and they can be used for similar applications with minor adjustments. Instead of relying on operators to prepare etching baths, the fully automated station mixes the required chemicals quickly, safely and reliably, always the same way and without waste or spillage. The result is precise control over the process steps, fast execution without delays and high output quality.

Improved Output Relies on Optimized Software and Fully Automated Stations

Using an optimization strategy with manual and semi-automatic operation and running the optimized process on fully automated wafer fabrication equipment can lead to continuous improvement in semiconductor manufacturing operations. As new processes are brought online and optimized, they replace older versions that may not use chemicals as efficiently, may rely on some manual input or may not have the same precise and reliable execution as the fully automated stations. Tailor-made software working with fully automated wet process equipment can result in such continuous improvements.

With 40 years of experience in wet process technology and extensive in house expertise from manufacturing its own equipment, Modutek is ideally situated to supply fully automated equipment that improves semiconductor manufacturing output. The company has a complete line of standard and custom-built wet process equipment and the SolidWorks software used to calculate process parameters is programmed in house. Working closely with its customers, Modutek designs and builds its fully automated stations and programs the corresponding software to help them meet their goals for continuous improvement. Contact Modutek for a free quote or consultation on selecting equipment that supports your specific manufacturing process requirements.
