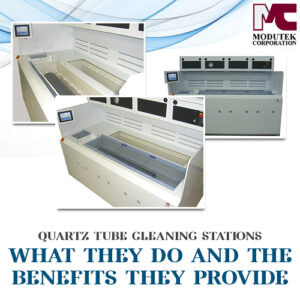

Quartz Tube Cleaning Stations: What They Do and the Benefits They ProvideEditor’s Note: This article was originally published in February 2016 and has been updated with new information and re-posted in February 2024.

Quartz tubes are critical in semiconductor manufacturing, where purity is paramount. These tubes provide a controlled atmosphere and precise temperature conditions necessary for various semiconductor manufacturing processes, including diffusion, oxidation, and chemical vapor deposition. Quartz, known for its high melting point and chemical inertness, ensures stability and purity during these high-temperature operations, essential for producing quality semiconductor wafers. The purity and cleanliness of quartz tubes are paramount, as even minor contaminants can significantly impact the manufacturing process’s efficiency and the final product’s quality.

With expertise in chemical handling and wafer processing equipment, Modutek is ideally situated as both a designer and supplier of Quartz Tube Cleaning Stations. Modutek provides horizontal Quartz Tube Cleaning Stations that cater to the specific needs of process engineers and facility managers. These cleaning stations are designed to deliver precision, efficiency, and compliance with industry standards, ensuring that semiconductor manufacturing processes remain uncontaminated and operate at peak performance.

Understanding Quartz Tube Cleaning Stations

The purity of Quartz tubes directly influences the quality of the semiconductors produced. Regular cleaning of these tubes is crucial for maintaining their efficiency and precision. Quartz tube cleaning stations play an essential role in this maintenance. They use specialized processes to remove contaminants from the tubes. Typically, these stations incorporate acidic and basic wash cycles followed by ultra-pure water rinses. This process ensures the removal of all types of contaminants, from particulate matter to chemical residues.

The effectiveness of these cleaning stations is vital for the integrity of semiconductor manufacturing. A well-maintained quartz tube contributes to the consistency and reliability of the production process, making these cleaning stations an indispensable part of the semiconductor industry.

Features of Modutek’s Quartz Tube Cleaning Stations

Modutek’s Quartz Tube Cleaning Stations feature horizontal designs that facilitate efficient cleaning processes. Standard stations are made of white polypropylene construction and have manual or automated roller systems. The station is designed and constructed to the specific size and length needed for the particular application. High-quality materials ensure durability and resistance to corrosive chemicals used in cleaning. Additionally, Modutek’s cleaning stations are equipped with both acid and rinse cycles, allowing for thorough cleansing of quartz tubes. The presence of manual and automated roller systems in these stations exemplifies their versatility, providing options to suit different operational preferences and enhancing the efficiency of the cleaning process.

Automation in Quartz Tube Cleaning

Modutek’s Stations incorporate advanced automation features, enhancing operational efficiency and safety. These automated systems streamline the cleaning process with precise control and repeatability, ensuring consistent cleaning quality. Automation reduces the need for manual handling, thereby improving safety and reducing contamination risks. The automated tube roller system and programmable recipes cater to various cleaning requirements, allowing flexibility and adaptability to specific process needs.

Benefits for Process and Facility Engineers

Modutek’s Quartz Tube Cleaning Stations are designed to meet the specific needs of process engineers and facility managers. For process engineers, the focus is on precision and efficiency, ensuring that the cleaning process aligns with the stringent standards of semiconductor manufacturing. The stations offer customization options crucial for adapting to various production requirements. For facility managers, the ease of installation and service is a key benefit. This ease of maintenance ensures minimal downtime and enhances overall operational efficiency. In addition, the stations contribute to reducing product defects, thereby ensuring high-quality output in semiconductor manufacturing.

Customization and Flexibility

Modutek’s cleaning stations are designed with customization and flexibility in mind, addressing the critical concerns of process engineers and facilities managers. Process engineers can prioritize systems that provide consistent, repeatable processes and support specific wet process requirements. Modutek’s stations offer customization options to meet these needs, ensuring compatibility with various chemicals and precise process control.

Facilities managers focus on systems that meet specific specifications and environmental and safety requirements. Modutek’s cleaning stations can be tailored to fit different space constraints and integrate seamlessly with existing electrical and plumbing setups. This adaptability is crucial for enhancing operational efficiency and ensuring compliance with safety and environmental regulations.

Customized Solutions for Diverse Needs:

Recognizing the varied requirements of semiconductor fabrication, Modutek’s Quartz Tube Cleaning Stations are designed with customization in mind. Whether it’s for delicate EPI tube cleaning, Poly Silicon tube cleaning, or versatile bottle washing, these stations are engineered to adapt to different process needs, ensuring optimal cleaning with minimal tube handling.

Innovative Design and Automation

Modutek’s cleaning stations incorporate advanced automation features. These include automated tube roller systems and programmable operation sequences, allowing process engineers to optimize cleaning cycles precisely. The integration of automation not only enhances process efficiency but also reduces the risk of contamination, a crucial factor for facilities managers concerned with maintaining high purity levels.

Safety and Efficiency

Since safety is a top priority in semiconductor manufacturing, Modutek’s stations are equipped with PVC safety shields, Teflon nitrogen guns, and deionized water hand sprayers. In addition, options for hot nitrogen drying systems and FM4910 material construction are available, aligning with the stringent safety and environmental standards of modern facilities.

Seamless Integration and Support

Designed and built in-house, Modutek’s cleaning stations are high-performing and easily integrated into existing setups. This self-contained, flexible nature ensures easy installation and service, a significant advantage for facilities managers overseeing complex semiconductor manufacturing environments.


For process engineers and facilities managers in the semiconductor industry, Modutek’s Quartz Tube Cleaning Stations incorporate customization, automation, safety, and efficiency. These stations testify to Modutek’s commitment to supporting the semiconductor industry’s evolving needs. For more detailed information on how these stations can help your specific processes, contact Modutek for a free consultation.
