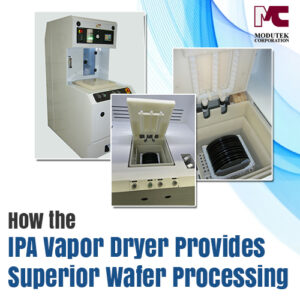

How the IPA Vapor Dryer Provides Superior Wafer Processing


How the IPA Vapor Dryer Provides Superior Wafer Processing

How the IPA Vapor Dryer Provides Superior Wafer ProcessingEditor’s Note: This article was originally published in January 2020 and has been updated with new information and re-posted in March 2024.

In the semiconductor industry, wafer processing is a foundational step that directly impacts the overall quality and efficiency of semiconductor devices. Isopropyl Alcohol (IPA) Vapor Drying provides a significant advancement in this field. After etching and rinsing, an IPA vapor dryer can produce dry silicon wafers without watermarks and limited particle contamination. In IPA drying, also known as Marangoni drying, the Marangoni effect relies on the low surface tension of IPA compared to water. When IPA vapor is introduced into the drying chamber, a surface tension gradient is established between the IPA and water on the surfaces of the silicon wafers. The surface tension gradient causes the water to flow off the wafers, leaving them clean and dry. The slow drain water feature also helps reduce particles contaminating the wafer surfaces. As a result, IPA vapor drying can produce especially clean wafers after a final etch and before the next semiconductor manufacturing step.

Understanding IPA Vapor Drying

IPA Vapor Drying is a sophisticated method that significantly improves the drying process in semiconductor wafer manufacturing. Central to this method is the Marangoni effect, which reduces surface tension differences and facilitates a non-contact and uniform drying process. The Marangoni effect comes into play when a liquid with a high surface tension (water) is displaced by one with lower surface tension (isopropyl alcohol). In the context of wafer drying, this effect ensures that when IPA vapor is introduced into the drying chamber, it condenses on the wet wafer surfaces, displacing water and leaving behind a dry, spotless surface. This process is particularly effective for thin silicon wafers, which are susceptible to breakage and contamination under traditional drying methods.

Advantages Over Traditional Drying Methods

Traditional wafer drying techniques, such as spin drying or heat drying, often fall short compared to IPA Vapor Drying. Spin drying can exert undue mechanical stress on wafers, leading to breakage, especially in the case of thin wafers. Heat drying, on the other hand, can leave watermarks and does not uniformly dry all wafer surfaces, potentially leaving residue that affects the wafer’s functionality. IPA Vapor Drying offers a superior alternative by providing a gentle, uniform drying process that eliminates mechanical stress and the risk of watermarks or residue. This leads to higher yields in semiconductor production, as the risk of wafer damage and contamination is significantly reduced.

Relevance for Thin Silicon Wafers

As semiconductor devices become increasingly miniaturized, the wafers become thinner and more fragile. The non-contact nature of IPA Vapor Drying, combined with its effectiveness in reducing contamination, makes it an ideal solution for these delicate materials. This method ensures that the integrity of the wafer is maintained throughout the drying process, which is crucial for the subsequent manufacturing stages.

Addressing Concerns of Process Engineers

Process engineers face several challenges when it comes to wafer drying. These challenges include particle contamination, wafer damage, and operational inefficiencies that can impact the overall quality and yield of semiconductor devices. IPA Vapor Dryers solve these issues by offering a more controlled and gentle drying process.

Particle Contamination

One of the primary concerns in wafer drying is the risk of particle contamination, which can lead to defects in the semiconductor devices. Traditional drying methods can exacerbate this issue by failing to remove all contaminants from the wafer surface. The IPA Vapor Drying process minimizes this risk by utilizing the Marangoni effect, which ensures a uniform and gentle drying process, significantly reducing the likelihood of particle adherence and contamination.

Wafer Damage

Wafer damage, particularly for thin silicon wafers, is a critical concern for process engineers. Traditional drying methods that involve physical manipulation or excessive heat can compromise the structural integrity of these wafers. The non-contact nature of IPA Vapor Drying eliminates mechanical stress, thereby reducing the risk of cracks, breaks, or other physical damage to the wafers during the drying process.

Operational Efficiencies

Process engineers need to optimize manufacturing efficiencies and throughput. Traditional drying methods can be time-consuming and require additional handling steps, which can introduce contaminants and increase processing time. On the other hand, IPA Vapor Dryers offer rapid drying cycles, typically between 10 to 15 minutes, and integrate seamlessly into existing wet bench processes. This integration eliminates additional transfer steps, reducing handling time and the potential for contamination, thereby improving operational efficiencies and throughput.

IPA Vapor Drying systems address all these concerns and align with the needs of process engineers by enhancing the cleanliness, integrity, and throughput of wafer processing. By adopting this technology, semiconductor manufacturers can achieve higher yields, reduce production costs, and maintain the high quality of their products, meeting the stringent demands of the industry.

Modutek’s IPA Vapor Dryer Technology

Modutek’s IPA Vapor Dryer incorporates innovative technology and design features to meet the high demands of semiconductor wafer processing. Below are the unique aspects of Modutek’s system, highlighting how it caters to the specific needs of semiconductor process engineers and contributes to more efficient wafer processing operations.

  • Construction Material and Design:
    • Made from FM4910 material of construction for cleanroom compatibility
    • Compact 30” wide cabinet design for easy integration into existing setups
  • Control and Usability:
    • Equipped with a PLC (Programmable Logic Controller) and touchscreen GUI for straightforward operation
    • Capability to store multiple drying recipes, accommodating various wafer types and process requirements
  • Single Chamber Processing Benefits:
    • Minimizes handling and transfer, reducing wafer contamination and damage risks
    • Integrates etching, rinsing, and drying in one chamber, enhancing efficiency and yield, especially for thin wafers
  • Efficiency and Safety Features:
    • Fast drying cycles (10-15 minutes) increase throughput
    • Emergency power-off (EPO) buttons and safety interlocks for enhanced operational safety
    • Additional features such as hot N2 drying option and N2 head case purge to ensure a controlled drying environment
  • Advantages for Semiconductor Manufacturing:
    • Reduced particle contamination through minimized handling and closed-chamber processing
    • Improved operational efficiency with quicker drying times and streamlined processes
    • Enhanced safety and reliability, ensuring high-quality wafer processing outcomes

Modutek’s technology offers a comprehensive solution for semiconductor manufacturing challenges, leading to improved product quality and process efficiency. By adopting these advanced dryers, facilities can expect significant advancements in their wafer processing capabilities.

Integration, Customization, and Wet Bench Compatibility

Modutek’s IPA Vapor Dryers are designed to meet the versatile needs of semiconductor manufacturing processes, focusing on seamless integration, extensive customization, and compatibility with existing wet bench stations. Below are the details on how Modutek ensures their dryers enhance semiconductor manufacturing workflows:

  • Seamless Integration with Existing Systems:
    • Tailors the integration process to fit IPA Vapor Dryers within existing semiconductor production lines efficiently
    • Ensures compatibility with current manufacturing workflows to avoid disruptions and maintain process continuity
  • Customization to Meet Engineering Demands:
    • Provides bespoke solutions, adapting dryer dimensions, interfaces, and functionalities to fit specific client needs
    • Collaborates with clients to tailor dryers to specific processing requirements, ensuring optimal performance and efficiency
  • Incorporation into Wet Bench Stations:
    • Modutek’s dryers are designed to integrate seamlessly with wet bench stations, providing a unified solution for etching, rinsing, and drying processes
    • This integration facilitates a streamlined workflow, reducing contamination risks and improving throughput in the semiconductor manufacturing process
  • Cooperative Design and Implementation:
    • Engages with customer engineering teams to identify precise process needs and challenges
    • Uses direct feedback to design and implement a dryer system that aligns with specific operational goals
  • Comprehensive Support and Training:
    • Offers detailed training and support to ensure effective operation and maintenance of the IPA Vapor Dryers
    • Provides ongoing customer service and technical support to address future needs or process upgrades

By focusing on these critical areas, Modutek’s IPA Vapor Dryers meet the current requirements of semiconductor manufacturing and accommodate future technological advancements. Integrating these dryers into wet bench stations further exemplifies Modutek’s commitment to providing customers with comprehensive, efficient, and adaptable solutions.

Technical Specifications and Maintenance

Modutek’s IPA Vapor Dryers are equipped with advanced features and specifications designed to meet the diverse needs of semiconductor manufacturing. Below are the technical details and maintenance guidelines essential for optimizing performance and ensuring longevity:

  • Technical Specifications:
    • Construction: FM4910 (PVC-C) material ensuring compatibility with cleanroom environments
    • Size: Compact design, typically 30” in width, to fit into existing processing lines
    • Interface: User-friendly PLC with a touchscreen interface for easy operation and recipe management
    • Safety Features: Includes emergency power-off (EPO) switches, safety interlocks, and PVC side shields for operator safety
    • Drying Technology: Utilizes the Marangoni effect for efficient drying, minimizing IPA usage and eliminating watermarks
    • Customization: Available in various configurations to meet specific process requirements, including different wafer sizes and throughput capacities
  • Maintenance Requirements:
    • Regular Cleaning: Scheduled cleaning of the dryer chamber and components to prevent contamination and ensure consistent performance
    • Component Inspection: Routine checks of all mechanical and electrical parts to identify and rectify wear or damage
    • Software Updates: Keeping the system’s software up-to-date to maintain operational efficiency and access new features
    • Safety Checks: Regular testing of safety features, such as EPO switches and interlocks, ensures they function correctly
    • Professional Support: Access to Modutek’s expert maintenance and support services for troubleshooting, repairs, and optimizations

By following these specifications and maintenance routines, users can ensure that Modutek’s IPA Vapor Dryers operate at peak efficiency, delivering consistent, high-quality drying results while maintaining compliance with industry standards. Proper maintenance not only extends the life of the equipment but also ensures the safety and productivity of the semiconductor manufacturing process.


Adopting Modutek’s IPA Vapor Dryer technology aligns with the current needs of semiconductor manufacturing and positions companies for future growth and innovation. The innovative wafer processing equipment that Modutek provides reduces contamination and damage risks, streamlines production, and adapts to evolving industry needs. Supported by comprehensive maintenance and expert services, it’s an essential tool for forward-thinking semiconductor manufacturers aiming to excel in the competitive tech landscape. Contact Modutek for a free consultation to discuss your specific process requirements.
